- Light Sensitivity Settings:
- “Dark only”: Only works at night
- “Dim light”: Works in low light
- “All day”: Works regardless of light level
- Time Delay Settings (Examples):
- 10 seconds
- 30 seconds
- 1 minute
- 5 minutes
Installation Instructions
- Turn off the power supply to the fixture.

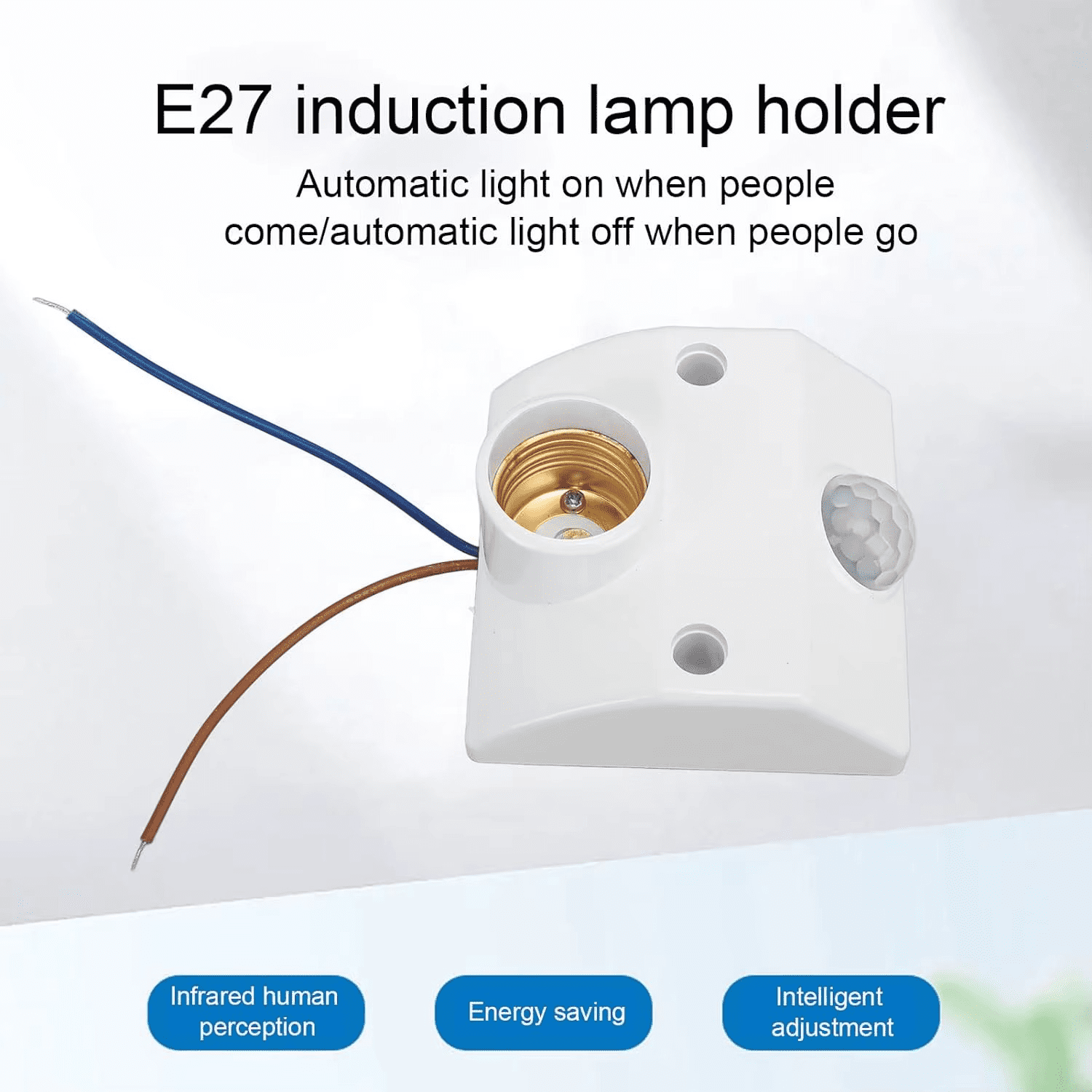

- Connect:
- Red wire to live wire (L)
- Black wire to neutral wire (N)
- Mount the unit using screws through the two provided holes.
- Screw in a compatible E27/E26 bulb.
- Restore power and adjust the delay time and light sensitivity settings as needed.

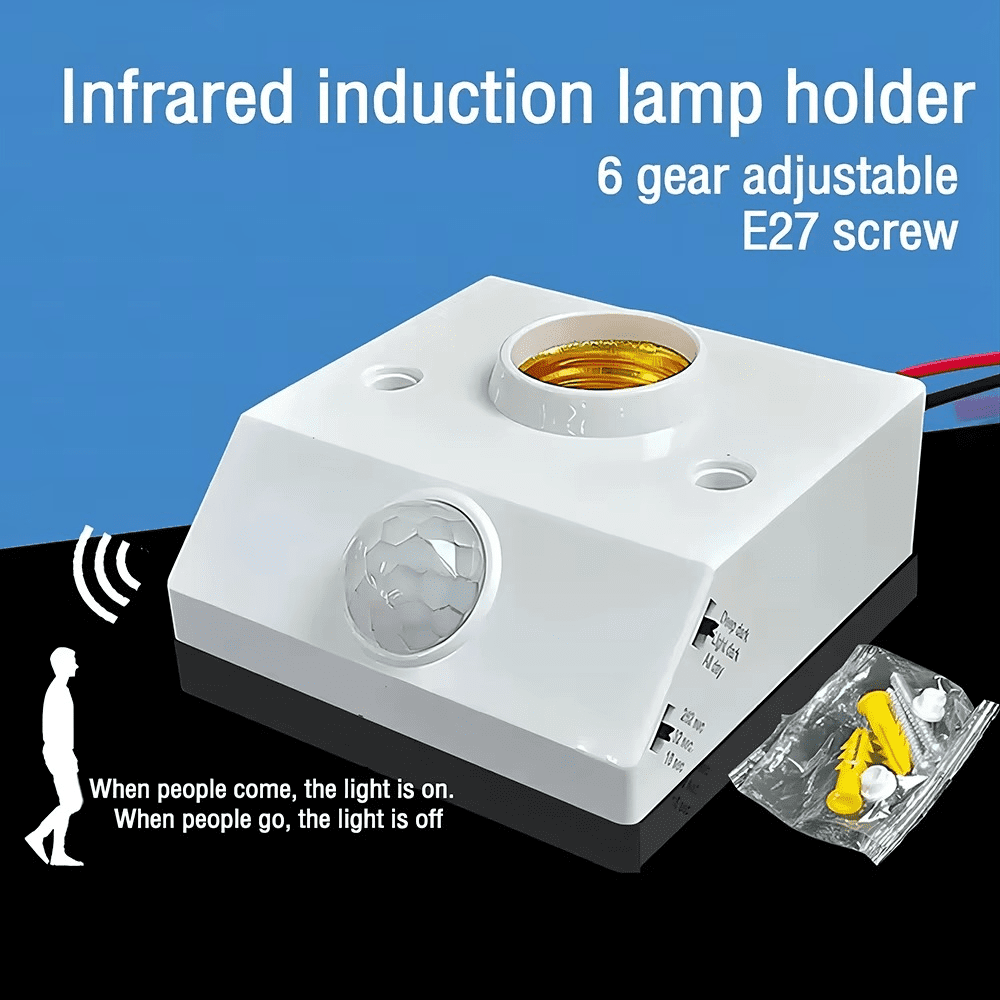

How It Works

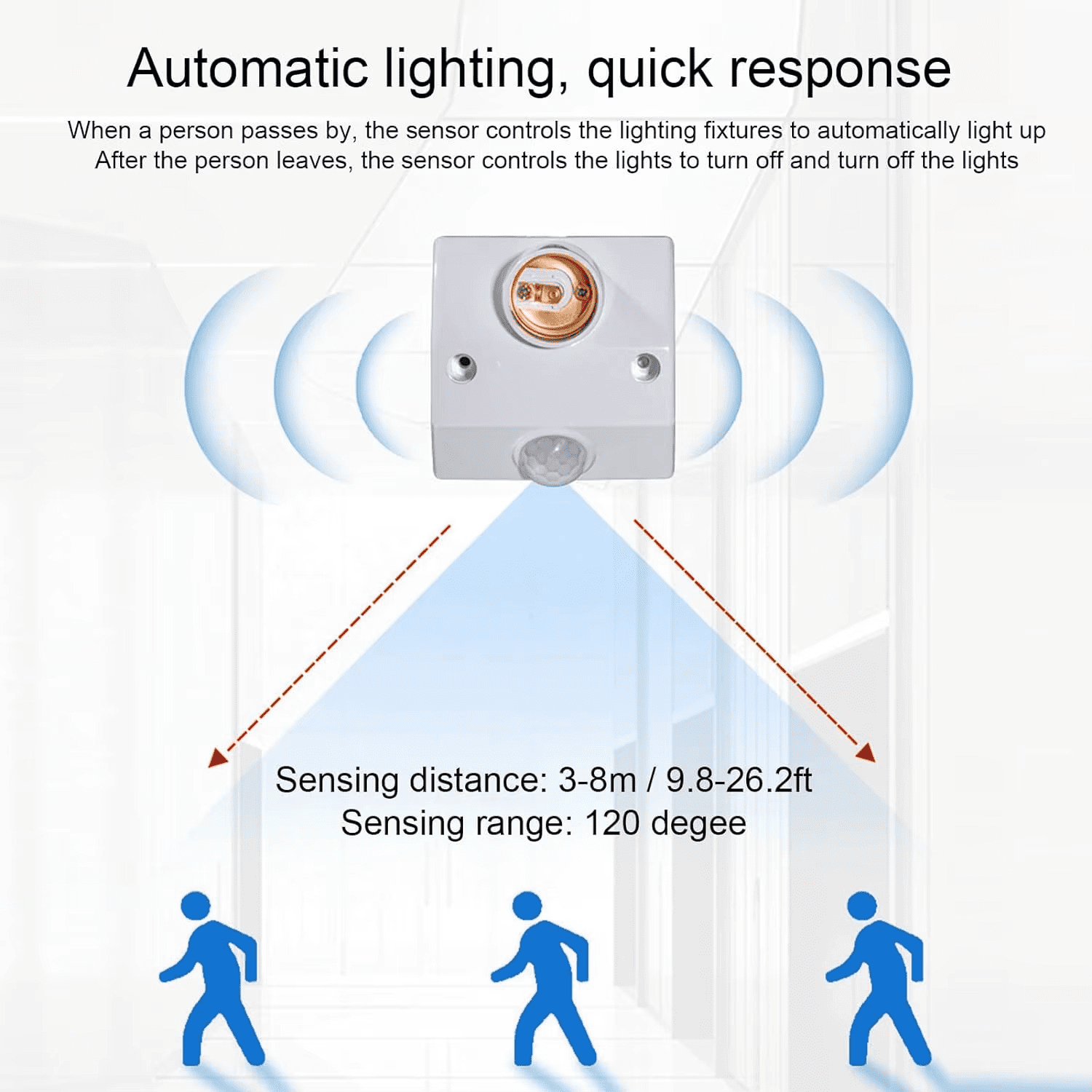

- The PIR sensor detects infrared radiation (heat) from a moving body (like a person).
- Once motion is detected within the sensing range:
- The bulb turns on automatically.
- It remains on for the set delay time, then switches off if no further motion is detected.
Advantages
- Saves electricity by only turning on when needed.
- Improves safety and convenience in low-light or hands-busy areas.
- Easy retrofit—no need for smart systems or app control.
Things to Note

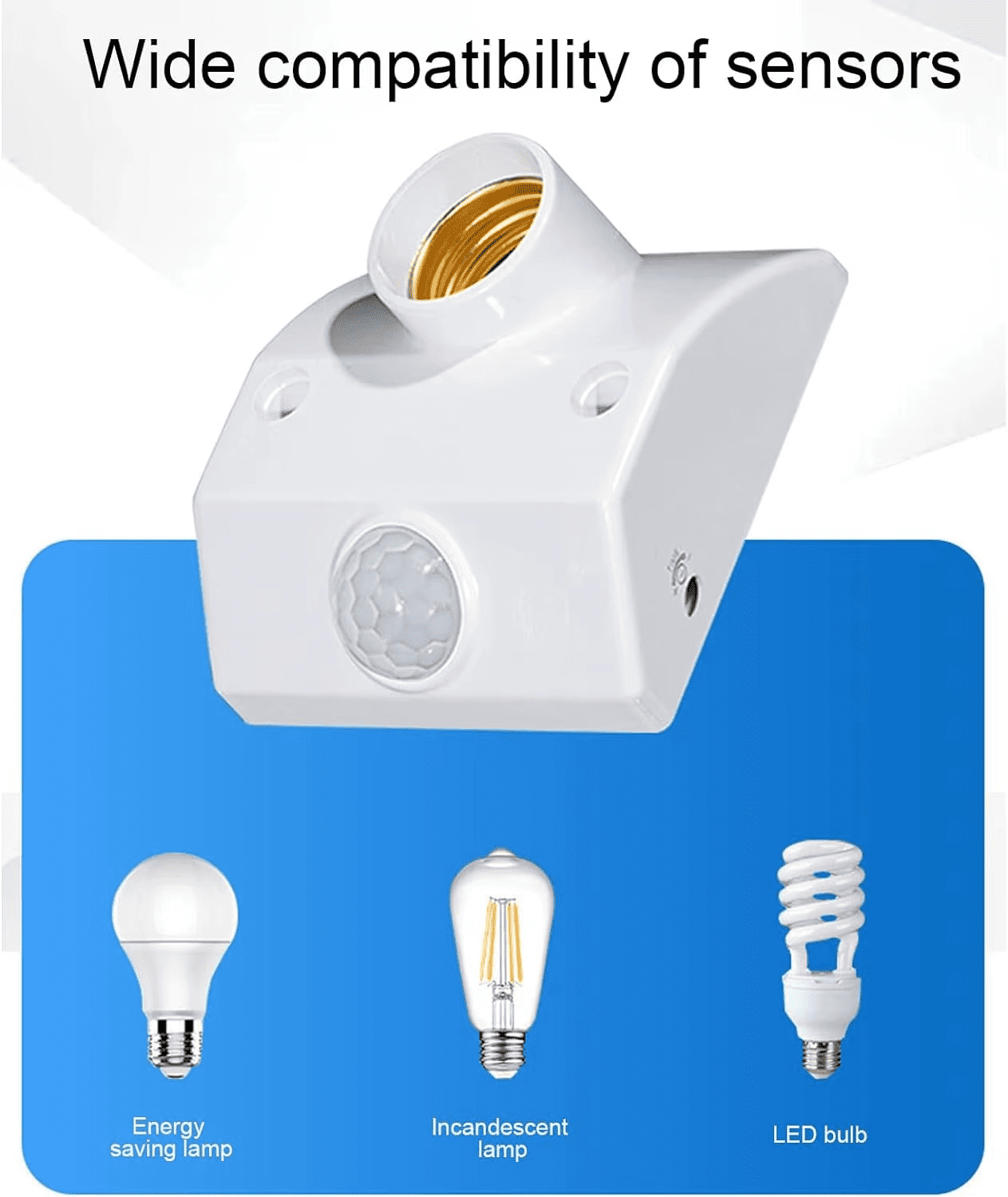

- Use only LED or CFL bulbs compatible with motion sensors to prevent flickering.
- Not recommended for use with dimmable bulbs unless specifically rated.
- PIR sensors are less effective behind glass, curtains, or obstructions.
- High ambient temperatures can slightly reduce detection accuracy.
