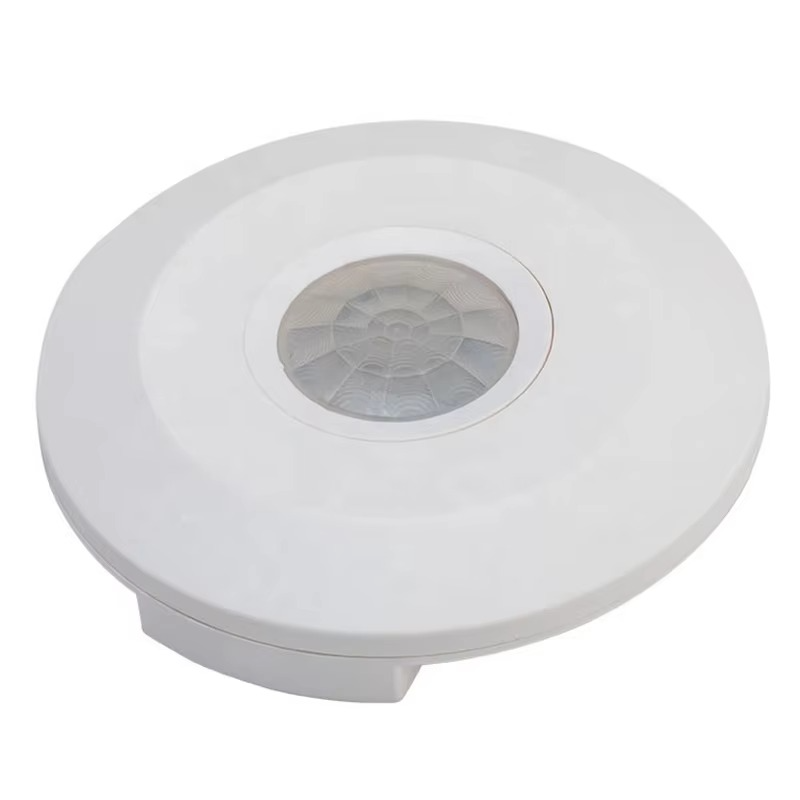

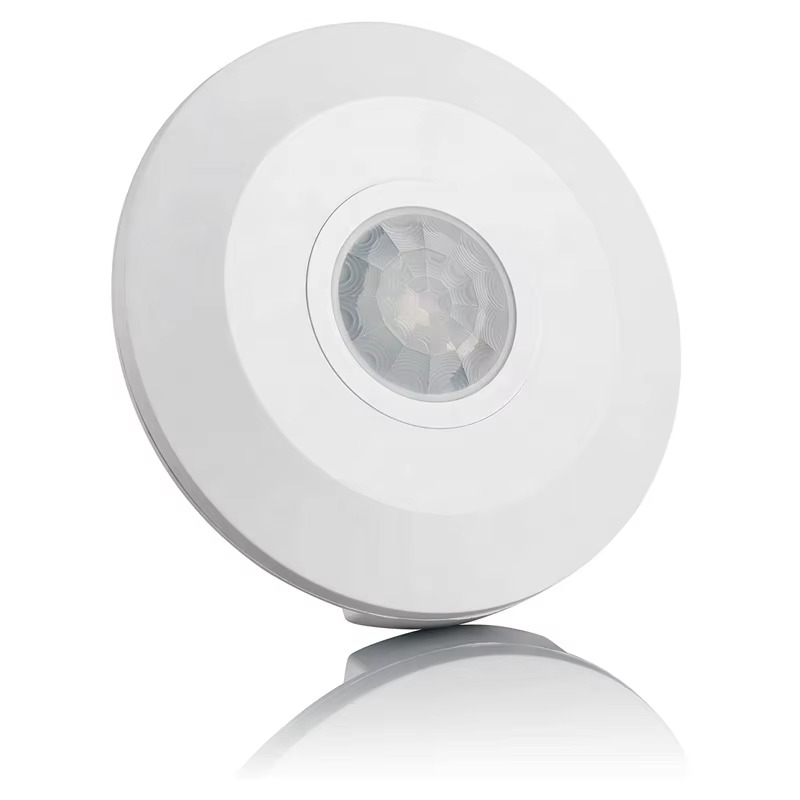

This is a ceiling-mounted Infrared Motion Sensor designed for indoor applications. It detects motion using passive infrared (PIR) technology and is typically used to automate lighting or security systems.
Specifications (from packaging)
- Power Supply:
220V AC - Detection Angle:

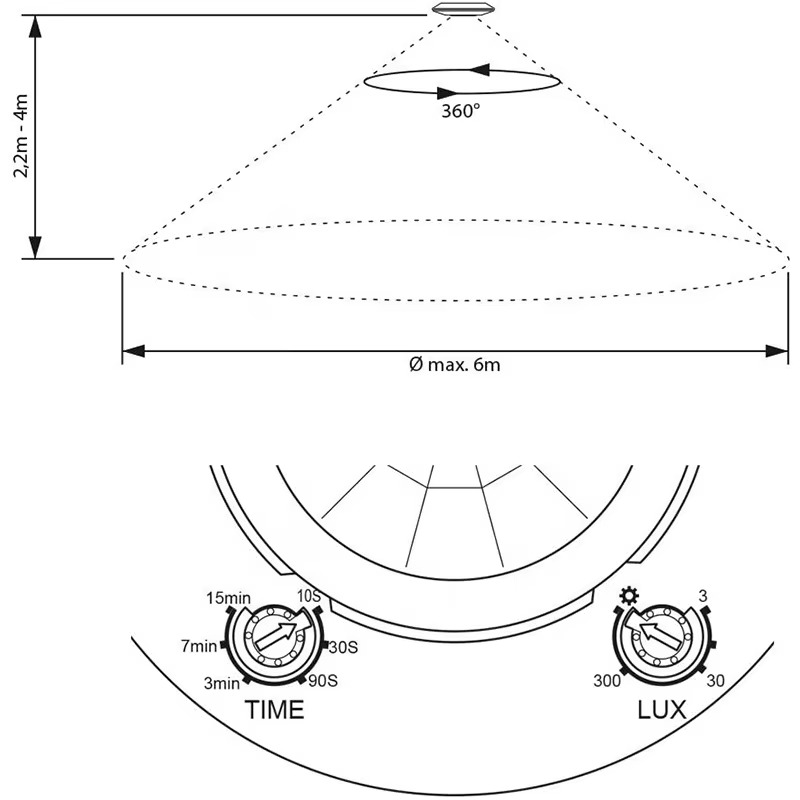

360° (Full circular coverage, ideal for central ceiling mounting) - IP Rating:
IP20
(Suitable for indoor use, not protected against water) - Sensor Type:
Infrared (PIR)
Passive Infrared Sensor to detect heat signatures (human movement) - Detection Distance:
Icon shows up to 6 meters (approximate range) - Application:
Ideal for automatic lighting control in homes, offices, hallways, restrooms, and staircases. - Installation:

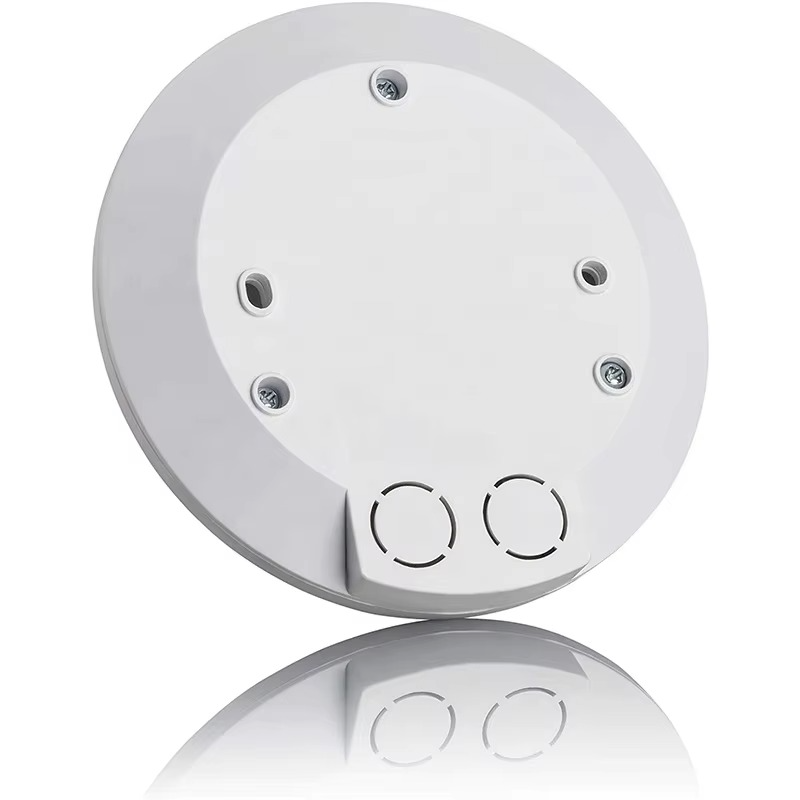

Typically ceiling mounted (flush or surface mount)
Icons Meaning (left to right)
- 220VAC – Operates on standard 220V alternating current
- 6m Range – Detection range (approx. 6 meters)
- 360° – Full circular coverage (ceiling mount)
- IP20 – Indoor use only (limited dust protection, no water protection)
- Infrared Sensor – Uses passive infrared technology to detect movement
- Light Control Function – Can be used to control lighting based on motion detection
