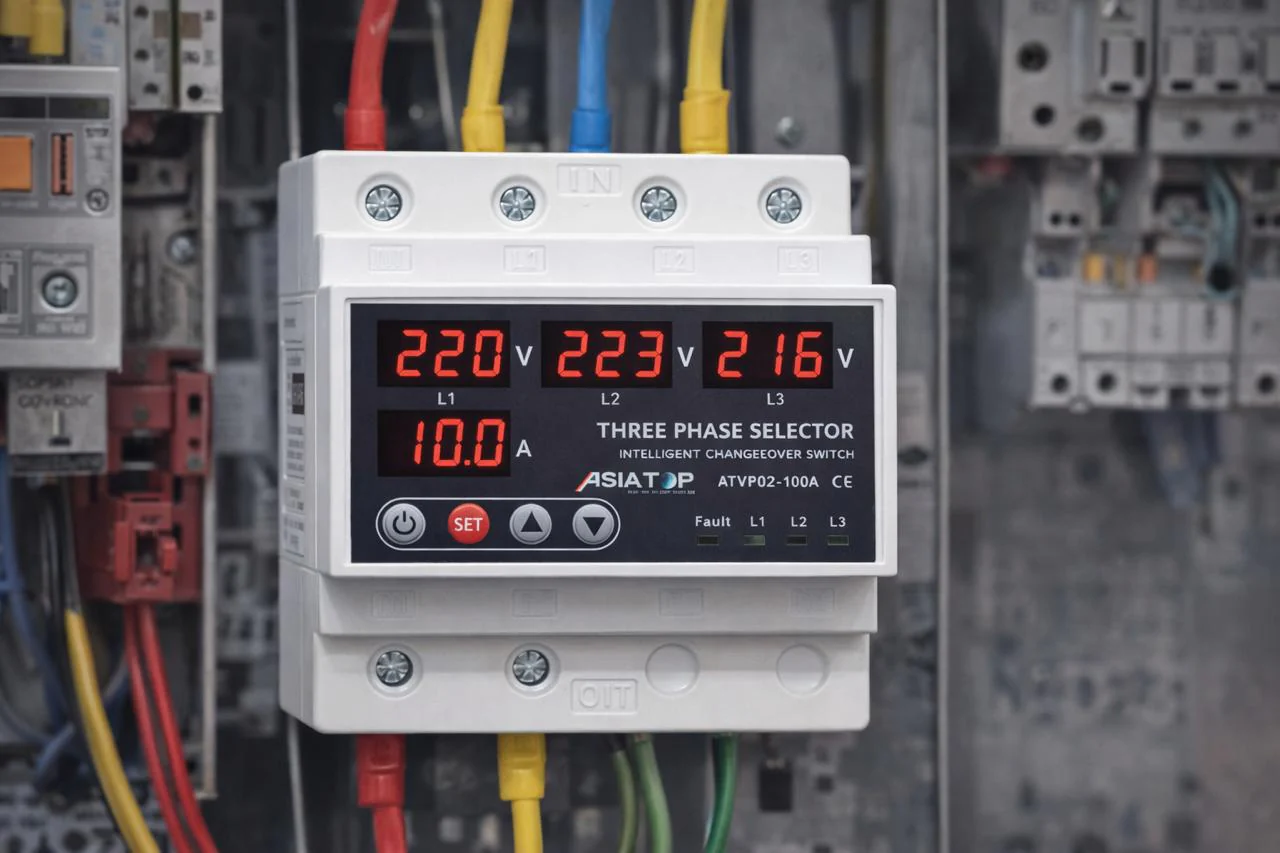

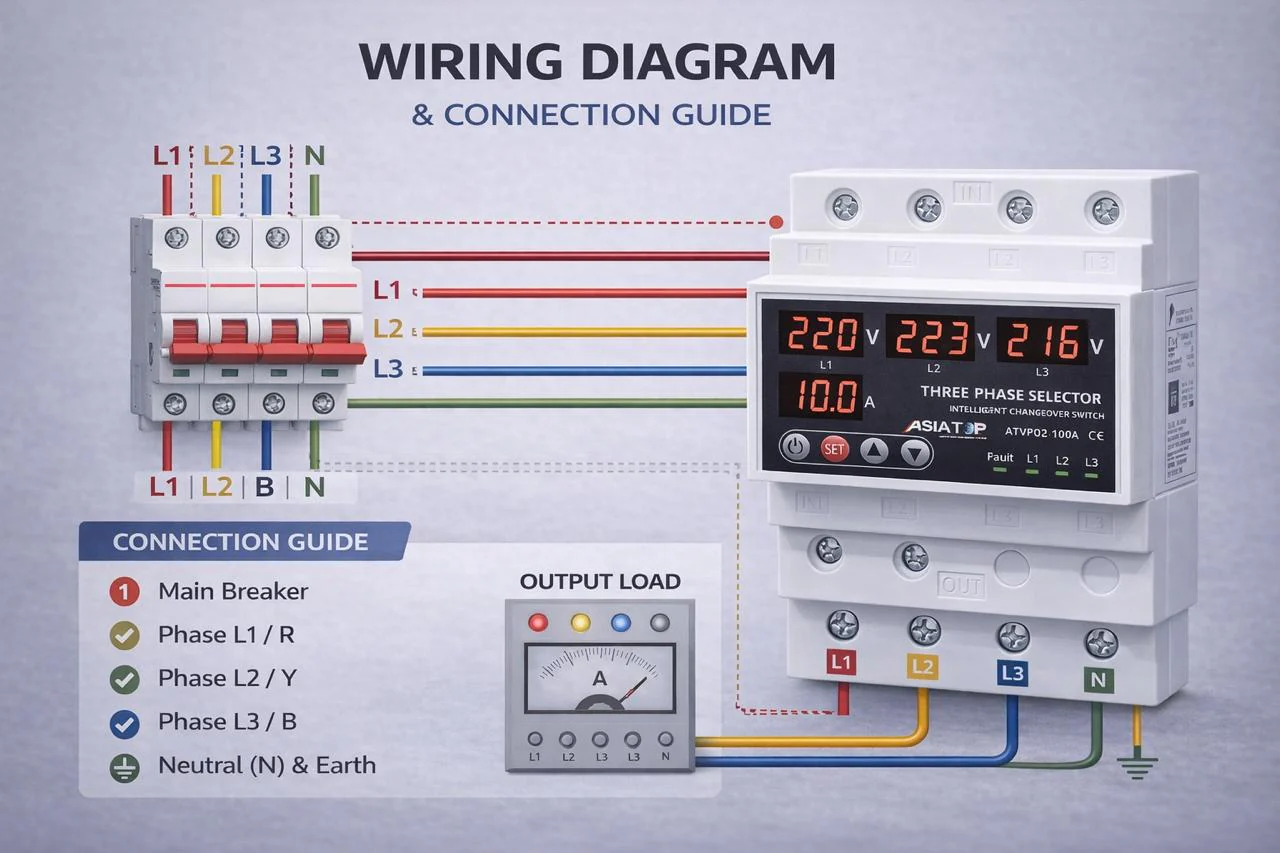

The ASIA TOP ATVP02-100A is an intelligent three-phase auto-selector and changeover switch designed to ensure a stable power supply for critical loads. It continuously monitors three separate voltage lines (L1, L2, L3) and automatically switches to a healthy phase if the current one fails or experiences voltage irregularities. This device is an essential safeguard for homes, factories, and generator-backed systems.

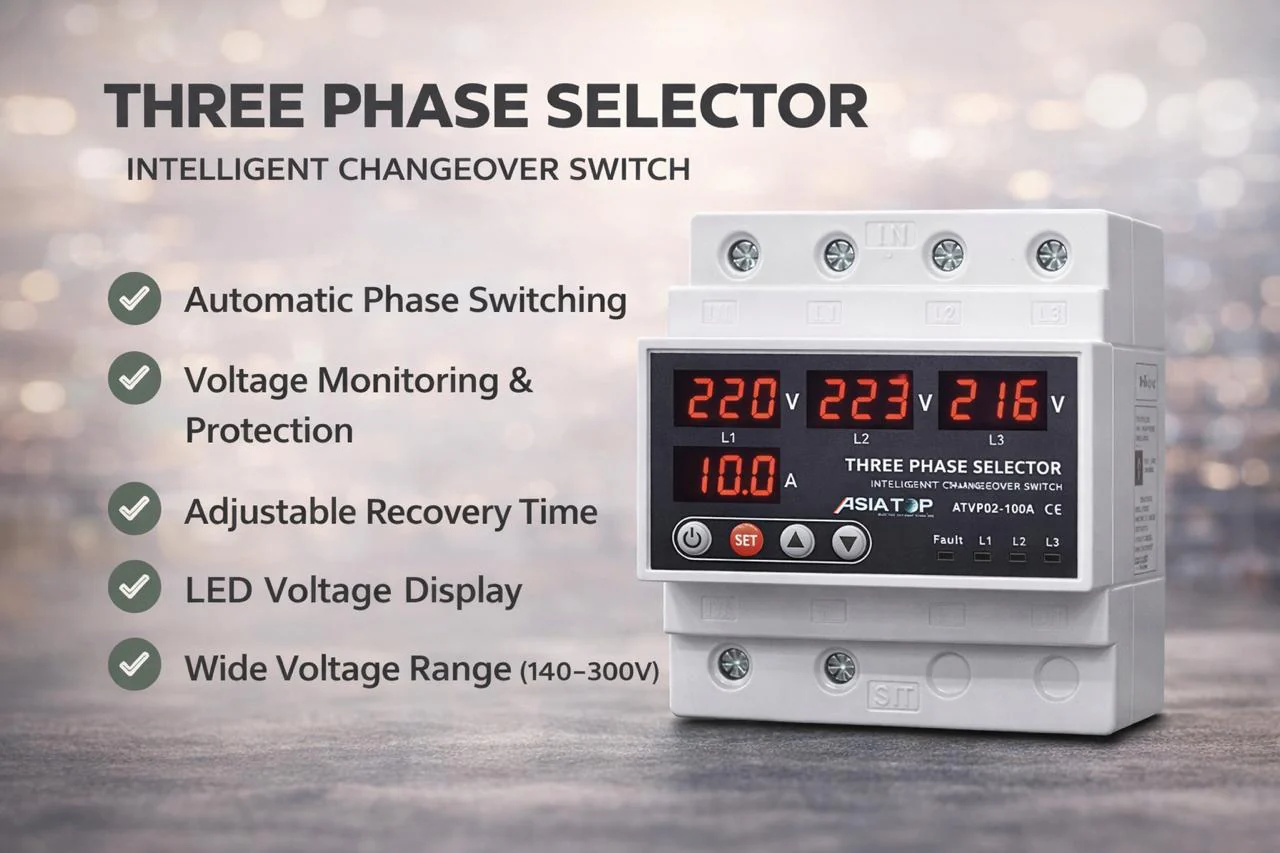

Key Features
-
Automatic Phase Switching:Â Seamlessly transitions between phases to maintain continuous power.
-

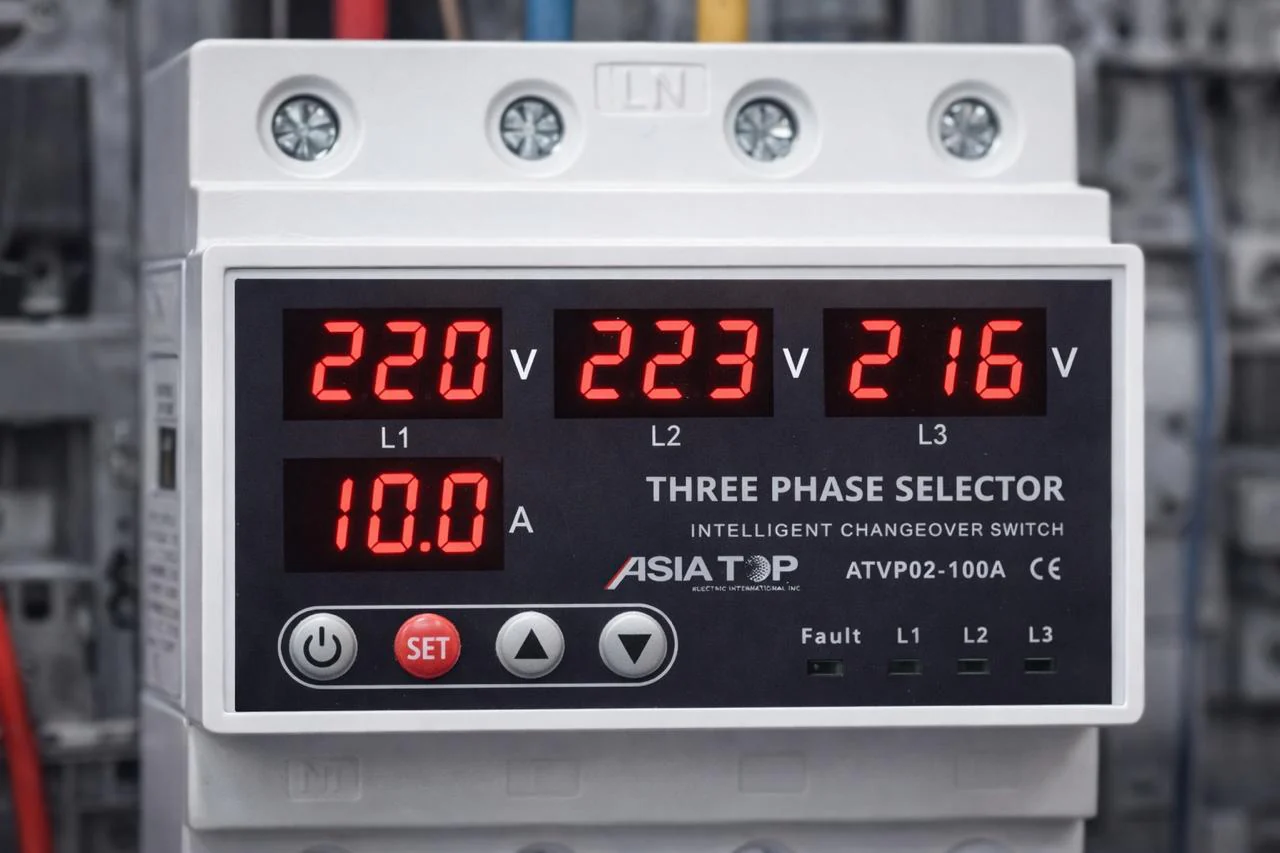

Comprehensive Monitoring:Â Real-time LED digital display for voltage across all three phases and current (Amps).
-
Built-in Protection:Â Offers robust voltage monitoring and protection against fluctuations.
-
Fully Adjustable: Features a programmable recovery time ranging from 1s to 500s to suit different equipment requirements.
-
Wide Operating Range: Compatible with a broad voltage spectrum from 140V to 300V.

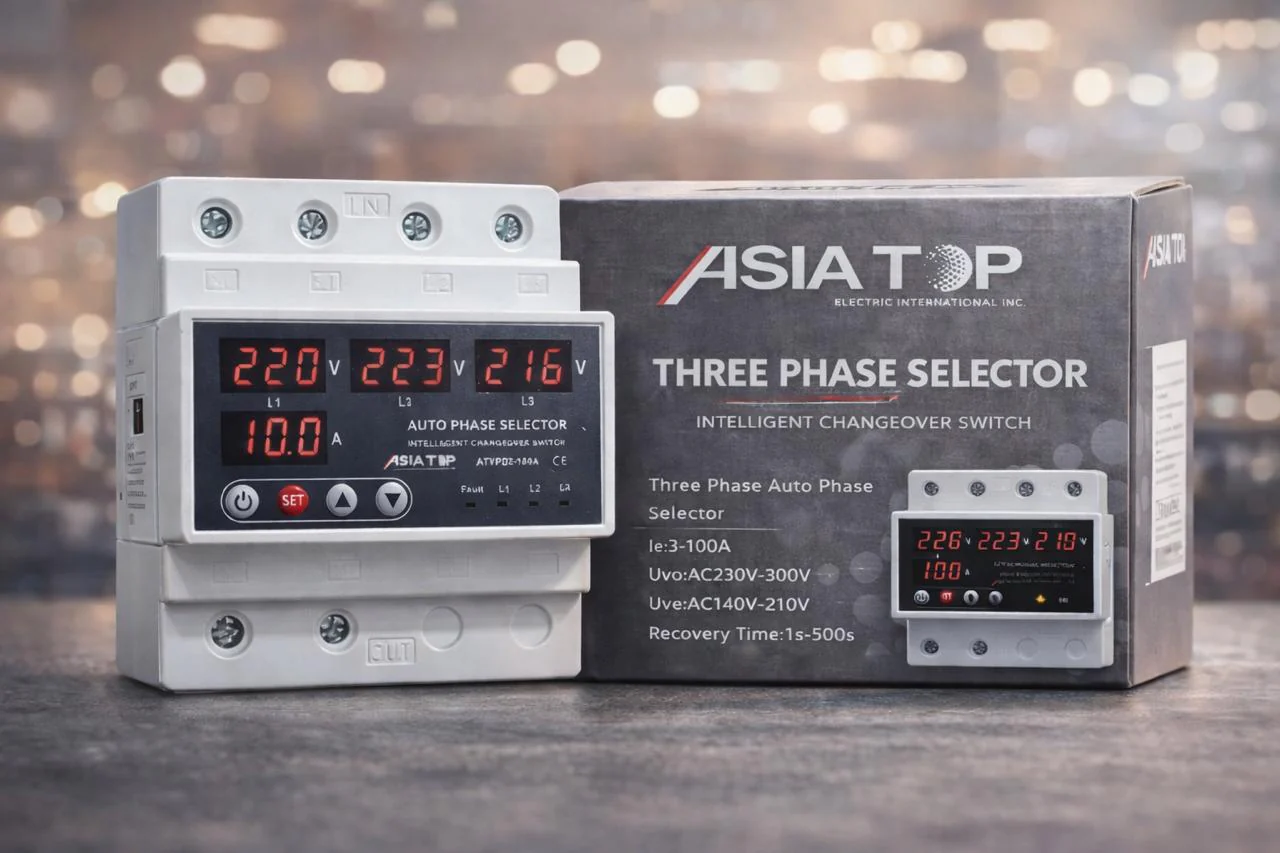

Technical Specifications
| Feature | Specification |
| Model | ATVP02-100A |
| Rated Current ($I_e$) | 3A–100A |
| Over-Voltage Protection ($U_{vo}$) | AC 230V–300V |
| Under-Voltage Protection ($U_{ve}$) | AC 140V–210V |
| Recovery Time | 1s–500s |
| Mounting | Standard 35mm DIN Rail |

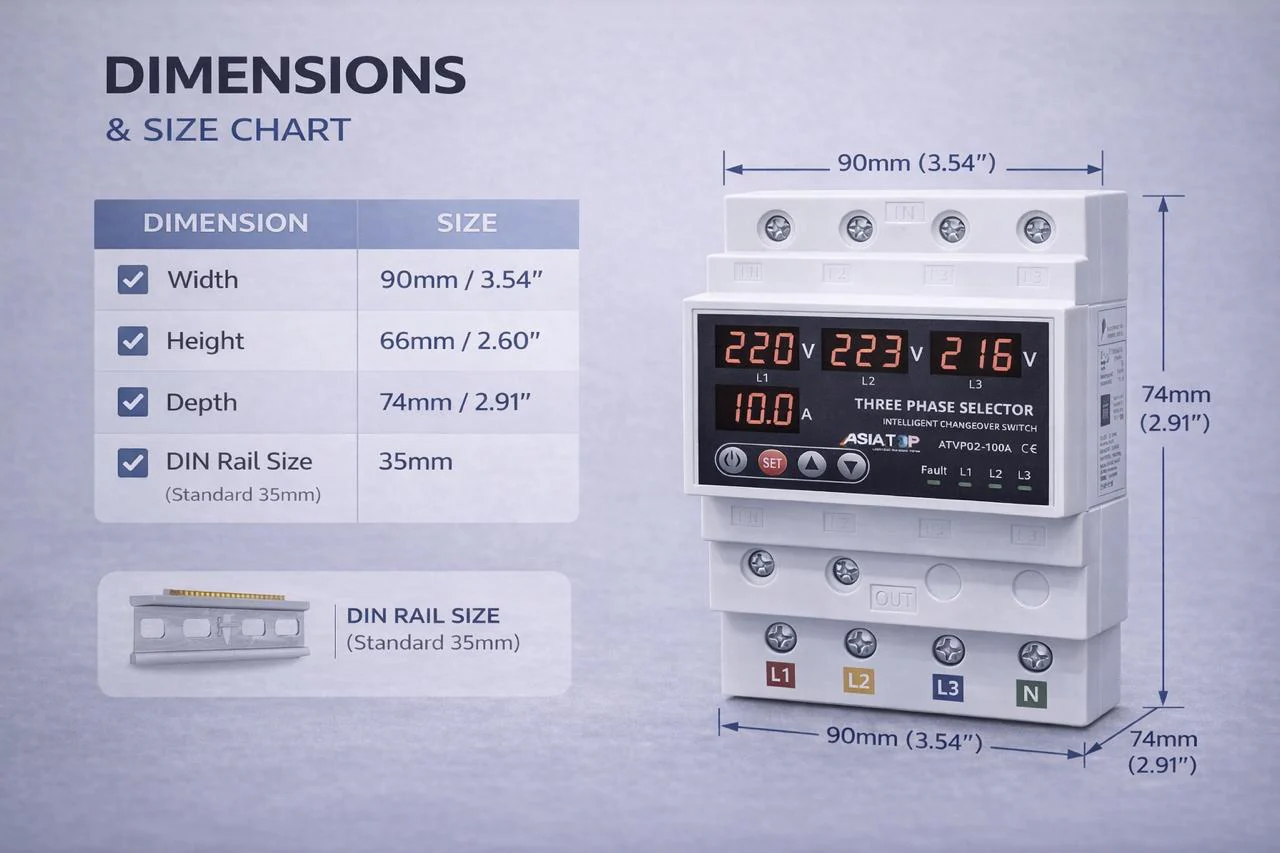

| Dimensions | 90mm (W) x 74mm (H) x 66mm (D) |

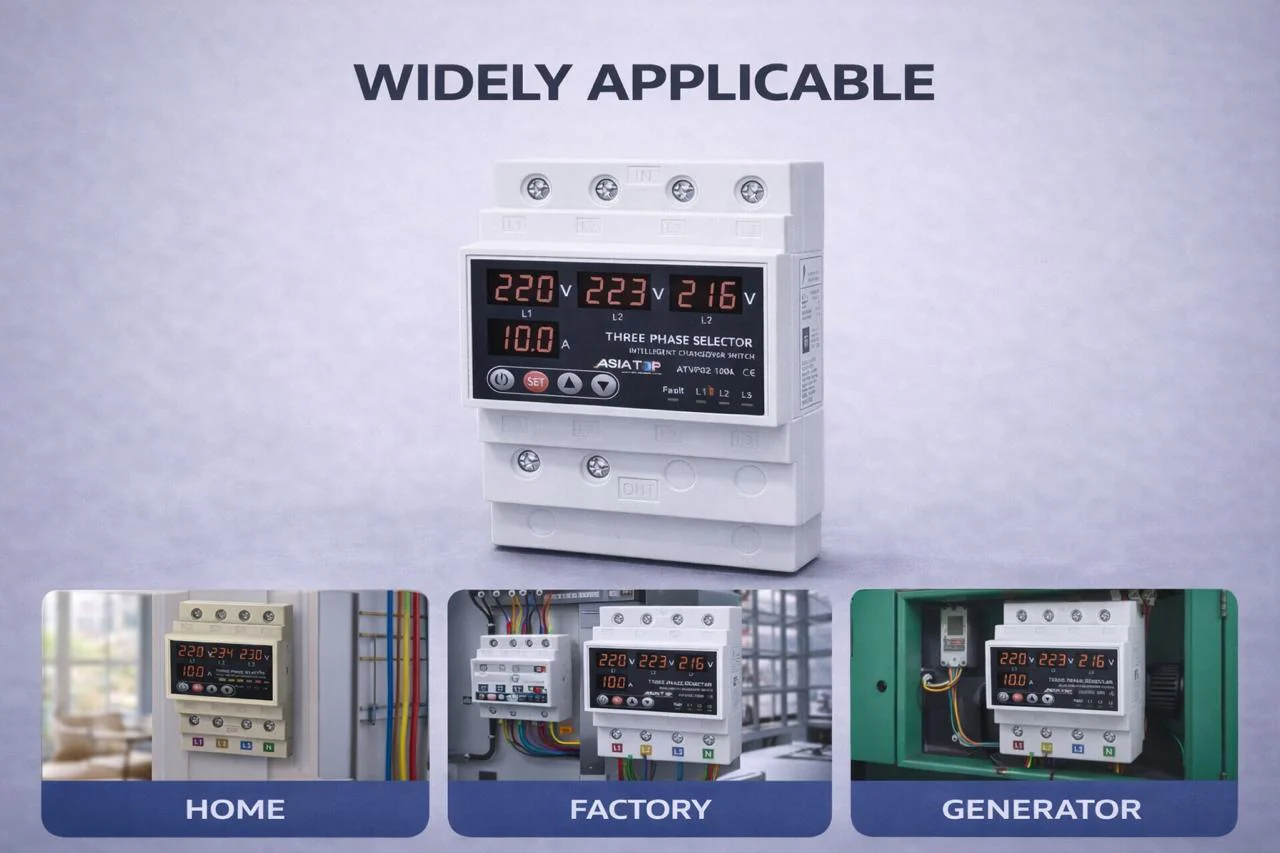

Applications
This device is Widely Applicable for:
-
Home Use:Â Protecting sensitive household electronics from phase failure.
-
Factory/Industrial:Â Ensuring motor and machinery stability.
-
Generators:Â Managing power transitions in backup systems.
